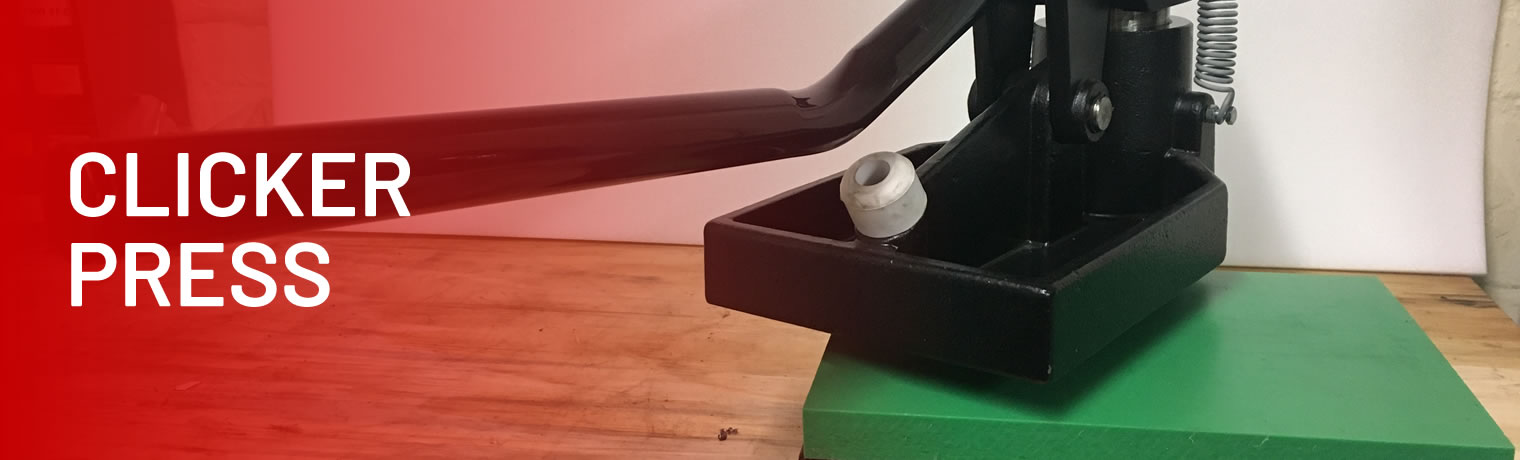

Hydraulic press, Cutting Presses in Scotland, UKThe M A Series III Clicker Press
The surprising power and strength of this industrial quality clicker sets it apart from all other clickers in its class.

The MA Series III press with swing-arm cutting head can perform many types of die cutting with steel rule dies and
clicker dies. This bench top clicker has been used for leather, embroidery, badge cutting, card stock, magnetic cards, coasters, small plastic shapes, straps and belt ends, clothing, rubber, key fobs, cork, plastic, felt and many other materials.

Ruggedly built with a cam actuated mechanical advantage The MA Series III requires little effort making operation very easy.
The swing arm operation provides the operator with a clear view of the work table (cutting board) making location on printed
products a snap.

Rotating head gives clear view and easy access.

Specifications:
Cutting pressure - up to 5 tons
Width - 305 mm
Height - 356 mm
Machine weight - 45 kg
Cutting pad - 300 x 228mm
Platen - 200 x 230mm
Machine (handle up) - 812 mm
Swing rotation - 360 deg.
Max. cutting thickness - 10 mm
Used in the Following Industries:
Saddlery
Belt Manufacturers
Embroidery badge cutting
Rubber stamp cutting
Surf board fin manufacture
Key fobs
Gasket & rubber washers
Tent/canvas manufacture
and many more
Often Cut Materials:
Leather
Plastics
Composites
Fibreglass
Rubber & Neoprene
Cloth/Canvas
Webbed Belting
Abrasive paper/cloth
Medical equipment
Kilts & sporrans
